3D Modelling and Design

3D Modeling

  • Modelling of full mechanical General Assemblies

  • Modelling of components to simulate mechanical movements

  • Rendered imaging of assemblies and components

  • Assistance in the production of technical files and documents

  • Conversion of hand sketches or old legacy drawings into production ready CAD models

  • Modelled using Autodesk Inventor 2026 Professional

Mechanical Design

  • Production of mechanical designs, including machinery, jigs, fixtures and tooling

  • Assistance in component selection

  • Assistance in material selection

  • Hand calculations for component design

  • FEA analysis of components or full assemblies

  • Custom component designs and modifications

  • Cost analysis of components or full assemblies

  • Assistance in reducing production costs for existing component designs and assemblies

  • Reverse engineering

Deliverables

  • STEP files

  • PDF files

Sub-assembly example

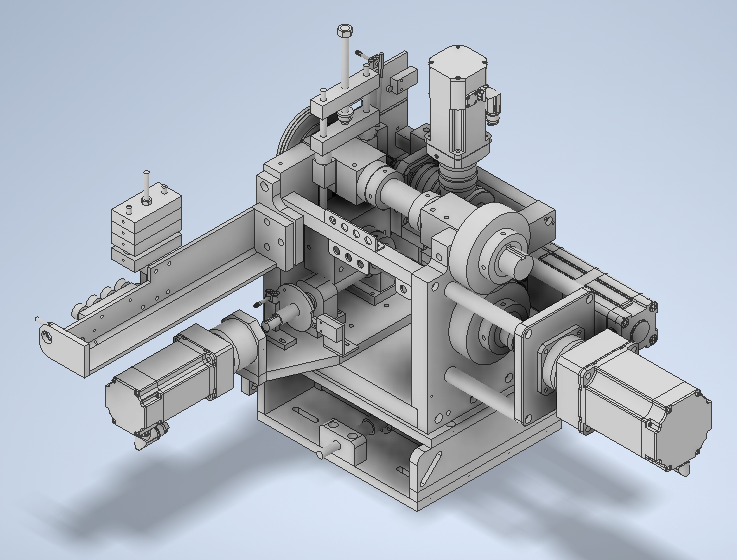

3D model of a mechanical automation device with motors, gears, and rails.

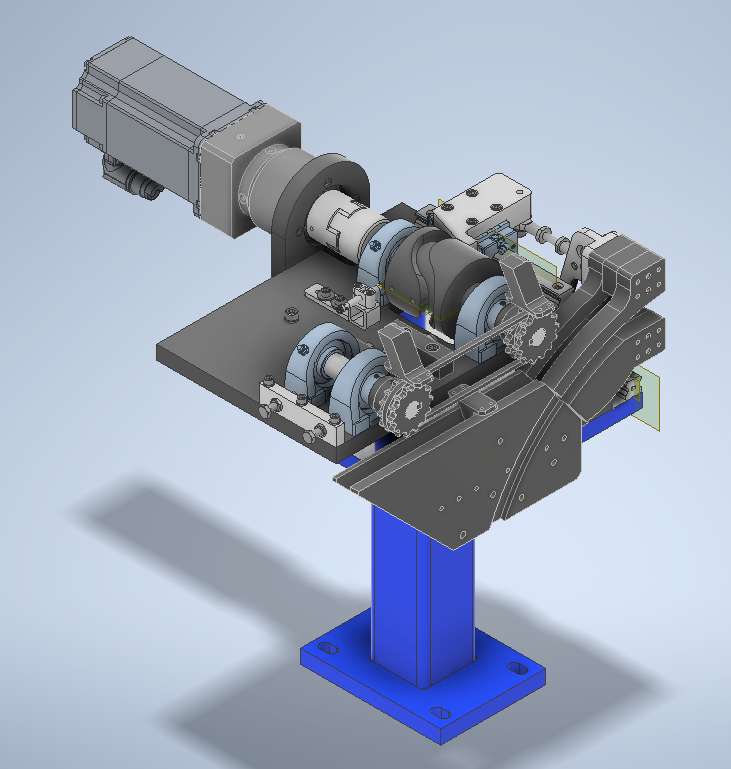

A detailed technical diagram of a mechanical assembly with gears, rollers, and a motor mounted on a blue stand.

Sub-assembly example

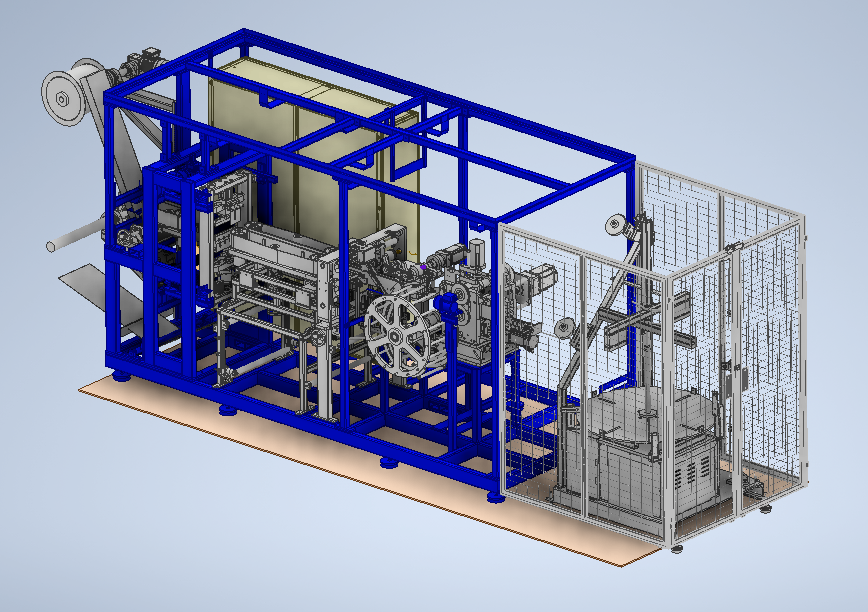

3D rendering of an industrial machine inside a blue structural frame with protective panels, featuring rollers, gears, and gauges, possibly a manufacturing or processing equipment.

General Assembly example

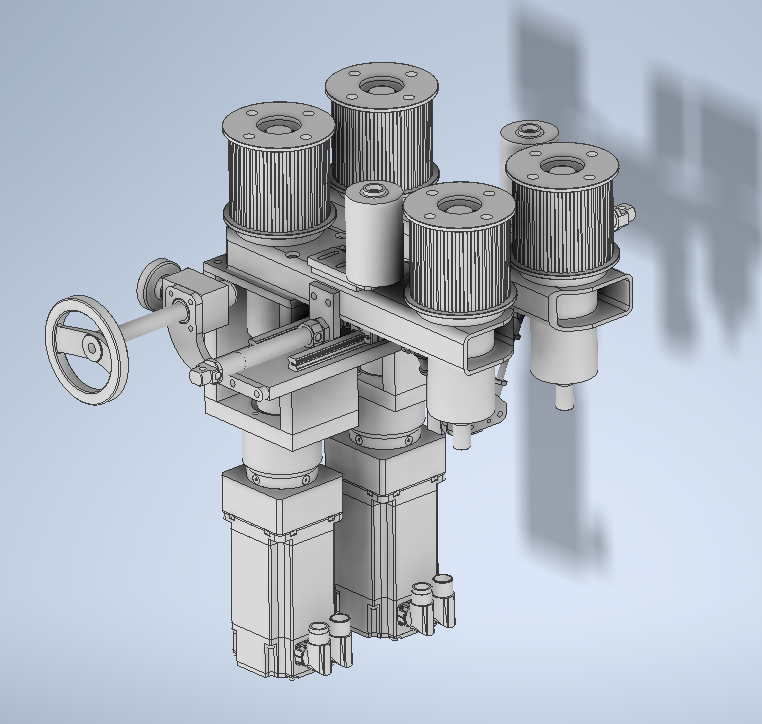

3D CAD model of a mechanical valve assembly with multiple cylinders, gears, and a handwheel.

Sub-assembly example

FEA studies example (component deflection and stress)

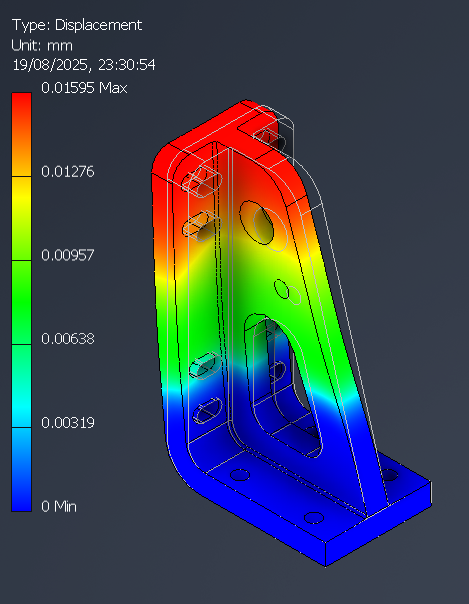

3D model showing displacement analysis with color gradient from blue to red indicating deformation levels in a mechanical part.

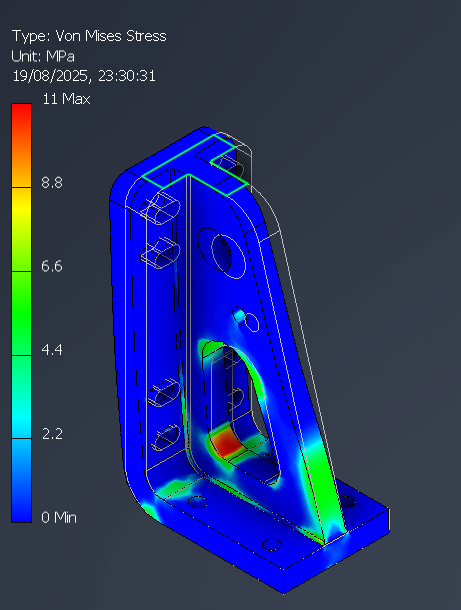

Finite element analysis image showing Von Mises stress distribution on a mechanical part, with a color scale from blue (low stress) to red (high stress), indicating areas of maximum stress at 11 MPa.

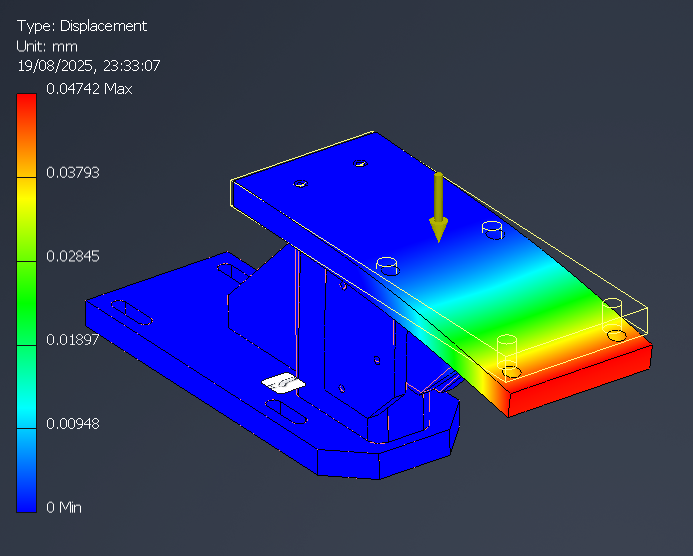

A 3D simulation of a mechanical component showing displacement analysis with color-coded stress levels, ranging from blue (least displacement) to red (most displacement), with a downward arrow indicating force direction.

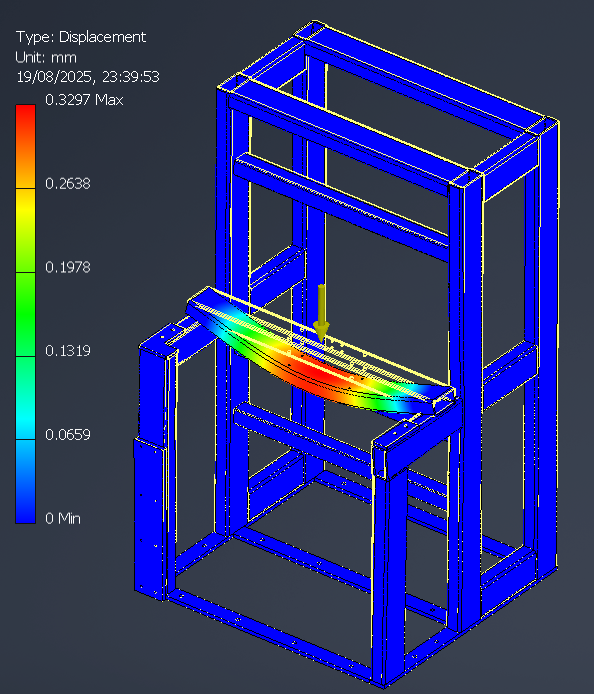

A computer-generated stress analysis of a wooden chair frame showing displacement levels with a color scale from blue (least displacement) to red (most displacement).
